Uniclean® PLE 3
Safe, Compliant Reprocessing for Flexible Endoscopes
The Uniclean® PLE 3 washer-disinfector delivers reliable, automated cleaning and disinfection of reusable endoscopes across multiple manufacturers.
Uniclean® PLE 3
Safe and Fast Endoscope Reprocessing

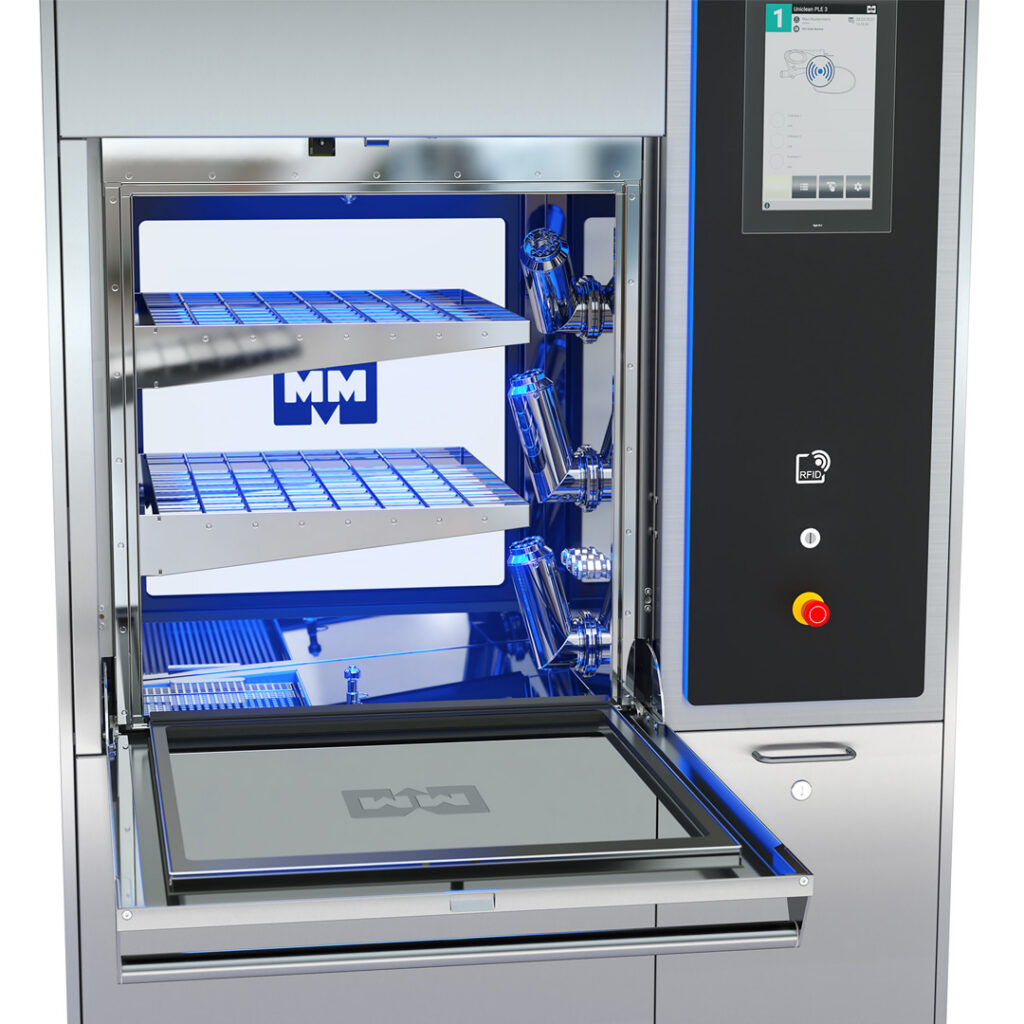

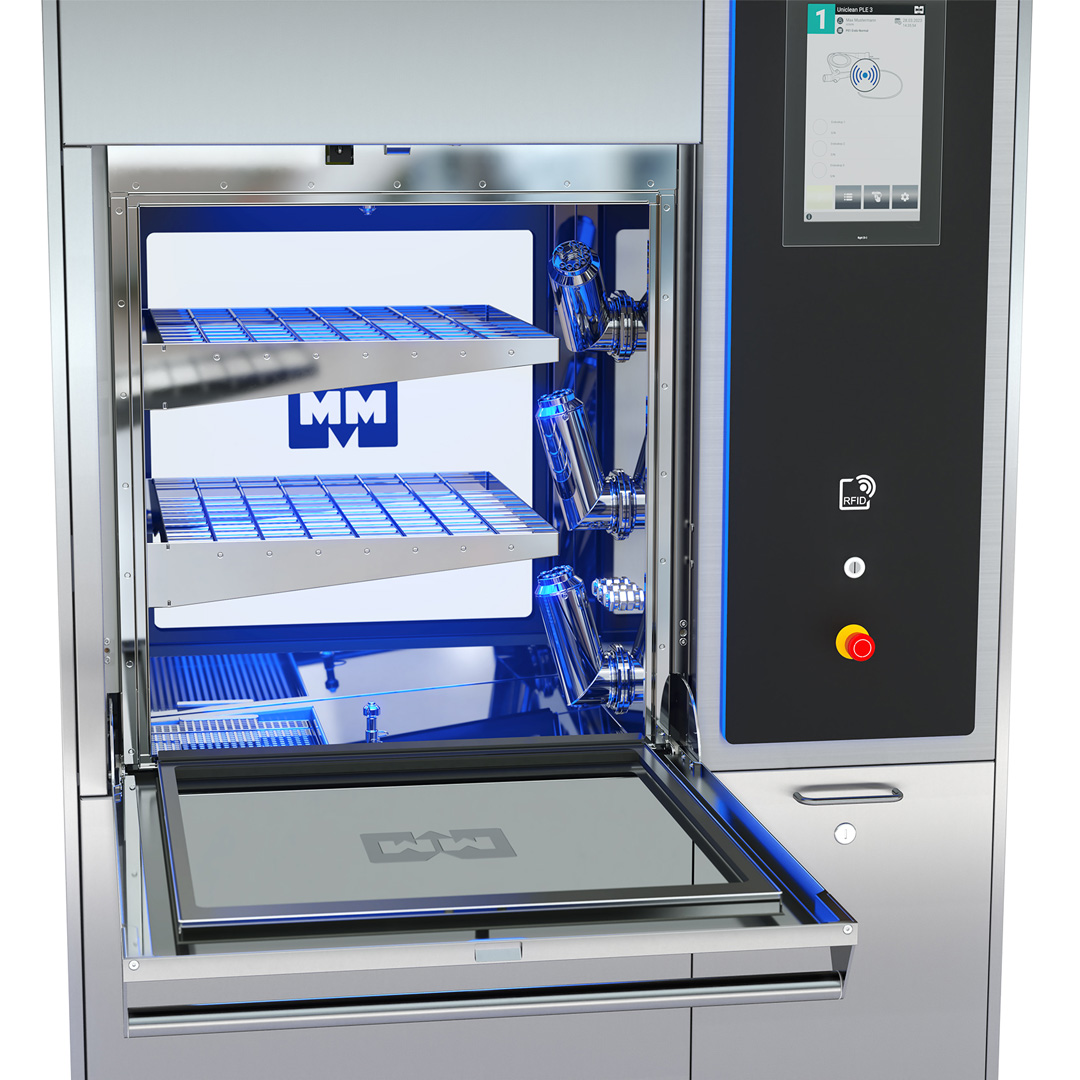

The Uniclean® PLE 3 washer-disinfector is designed for the automated cleaning and disinfection of reusable, flexible, thermolabile endoscopes from different manufacturers.
It meets all quality-related requirements and complies with the DIN EN ISO 15883 series (Parts 1 and 4), with CE marking authorised under MDR 2017/745 EU.
The PLE 3 reprocesses a wide range of flexible endoscope types, including:
- Bronchoscopes
- Cystoscopes
- Duodenoscopes
- Fibroscopes
- Gastroscopes
- Colonoscopes
Key Features
- Automatic & Continuous Leak Test
- Can process up to 3 scopes per cycle
- Low Water Consumption & Short Cycle Times
- “Halo” LED Control Panel with 10″ MMM Smart HMI
- Fine Filter Channel Protection
- Final Rinse via Tank or Sterile Filter
- Easy-to-Service Complete Concept
- Peracetic Acid or Glutaraldehyde
- EDScab® 8H Compatible
Technical Data
Specifications
- Endoscope capacity: 3
- 2-door pass-through configuration
- Chamber: 594 × 684 × 559 mm
- Chamber capacity: 227 litres
- External: 1,990 × 1,000 × 660 mm* or 740 mm* including handles
- Chamber material: 316L stainless steel
- Disinfectant: peracetic acid or glutaraldehyde
Standard Features
- Double-door, pass-through version with hinged doors
- Capacity for 2 or optionally 3 endoscopes
- Chamber material: 316L stainless steel Automatic leak test before programme start
- Monitoring system for up to 7 channels with flow measurement plus leak test
- RFID-based endoscope and user identification
- 3-colour chamber and panel status lighting
- Integrated external drying (optional)
- Automatic monitoring of the most important process parameters
- Rotating nozzles in the chamber for external cleaning (no spray arms)

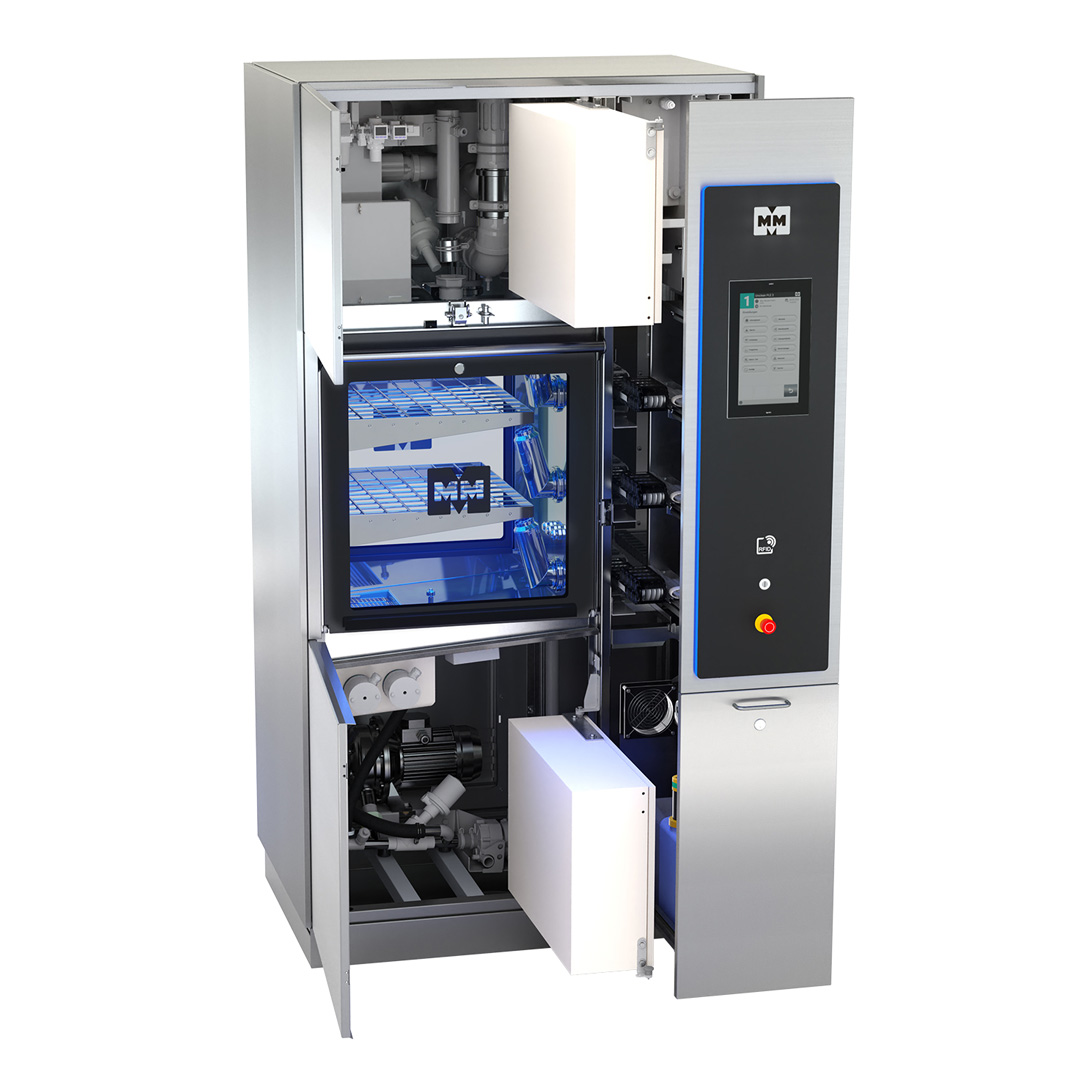

- Front maintenance access Thermal self-disinfection programme
- Channel drying using sterile compressed air
- 2 dosing pumps with flow meter (maximum 3, optional)
- Telescopic drawers for controller and cleaning agent
- Main control cabinet with pivoting frame
- RFID identification of cleaning agent container (optional)
Accessories
Endo Adapter Sets
- Complete sets or individual adapters available
- Compatible with Olympus, Pentax, Fujifilm, Wolf & Storz
- Monitors all active channels with flow measurement
- Includes leak test across all connections
- Pre-configured for most endoscope types

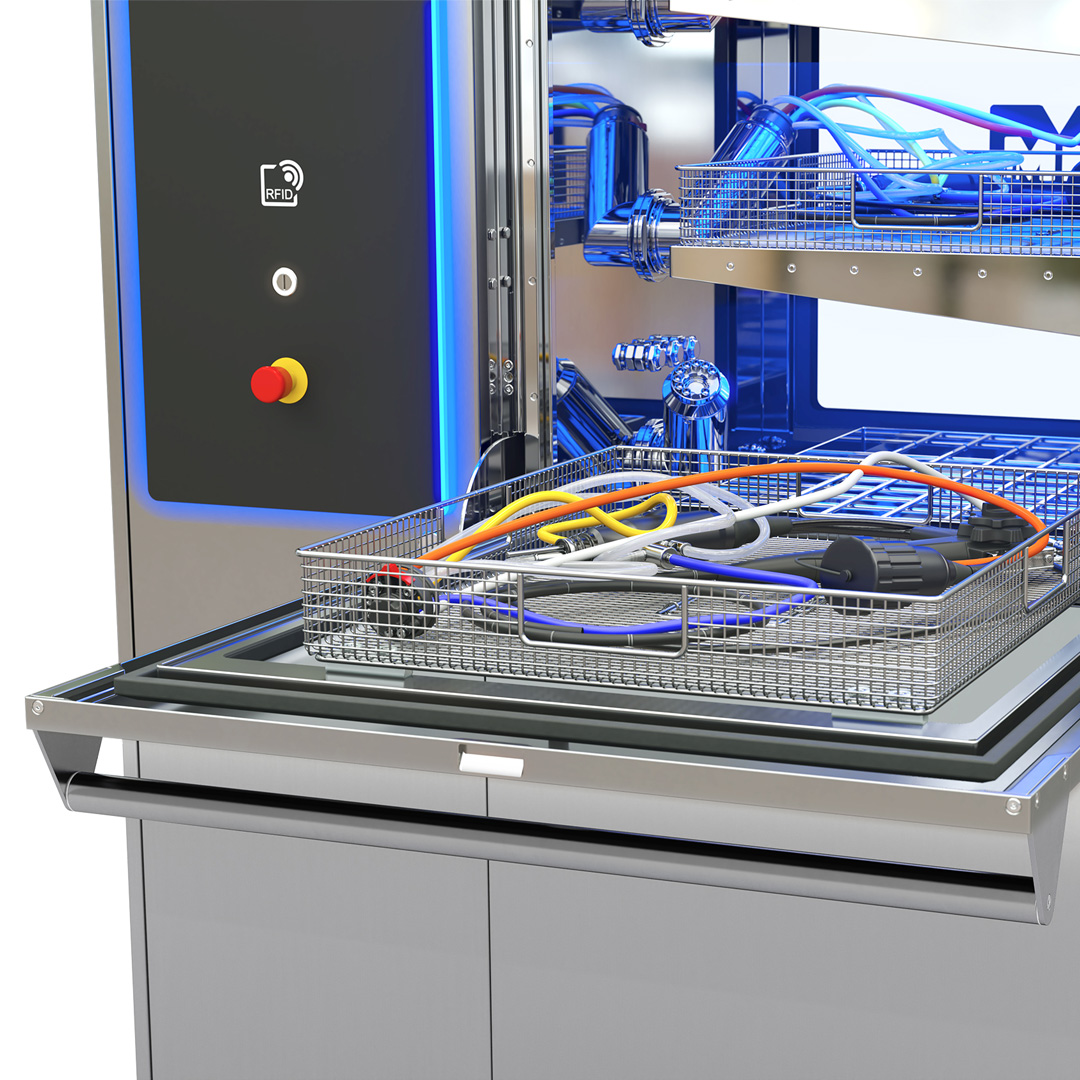

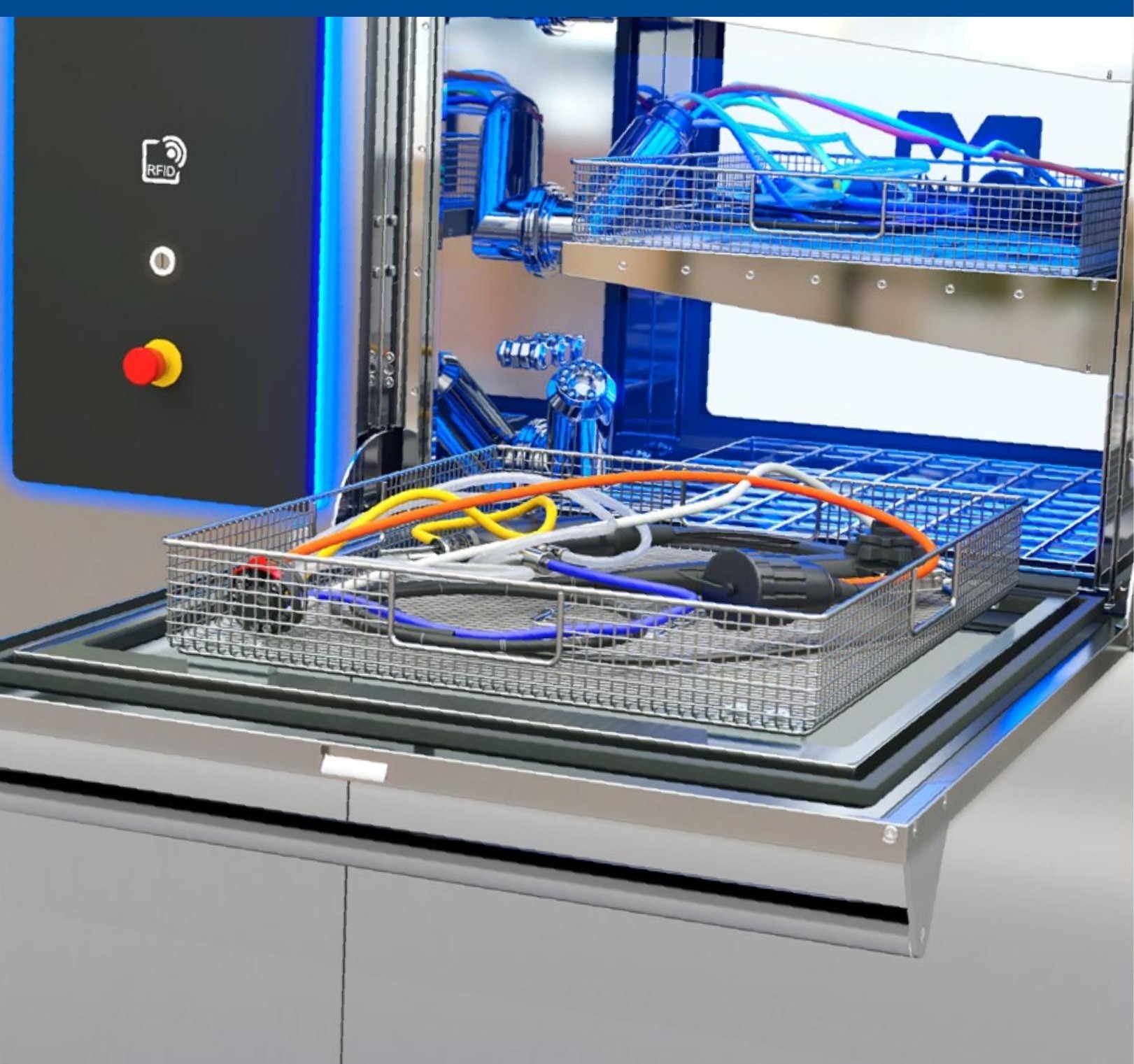

Endo Sieve Basket
- Stainless steel wire mesh construction
- Holds a single flexible endoscope
- Four side grips for safe handling
- Plastic support base included Compatible with Uniclean® PLE 3 and EDScab® 8H

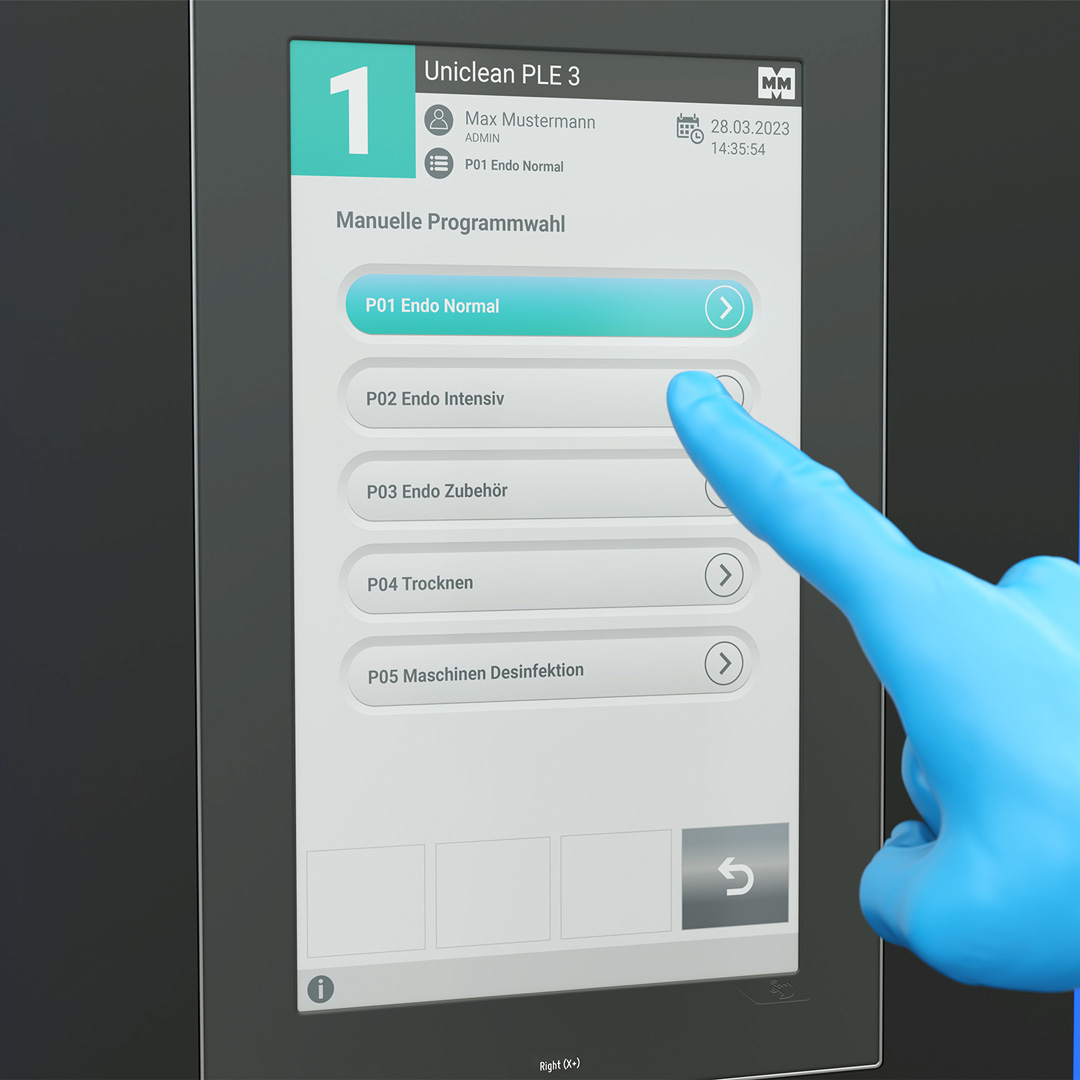

“Halo” LED Control Panel & MMM Smart HMI
A cleverly designed LED panel reflects status colours across the stainless steel surface so machine state is visible at a glance.
The vertically arranged 10″ touchscreen handles the rest: structured navigation, remaining time display, and flexible parameter configuration.
- PLC controller with 10″ touchscreen, vertically arranged
- Clearly structured menu navigation
- Large remaining time display
- Validated to DIN EN 62304
- Sophisticated parameter structure for flexible machine configuration
- Energy-saving idle mode activates automatically when not in use

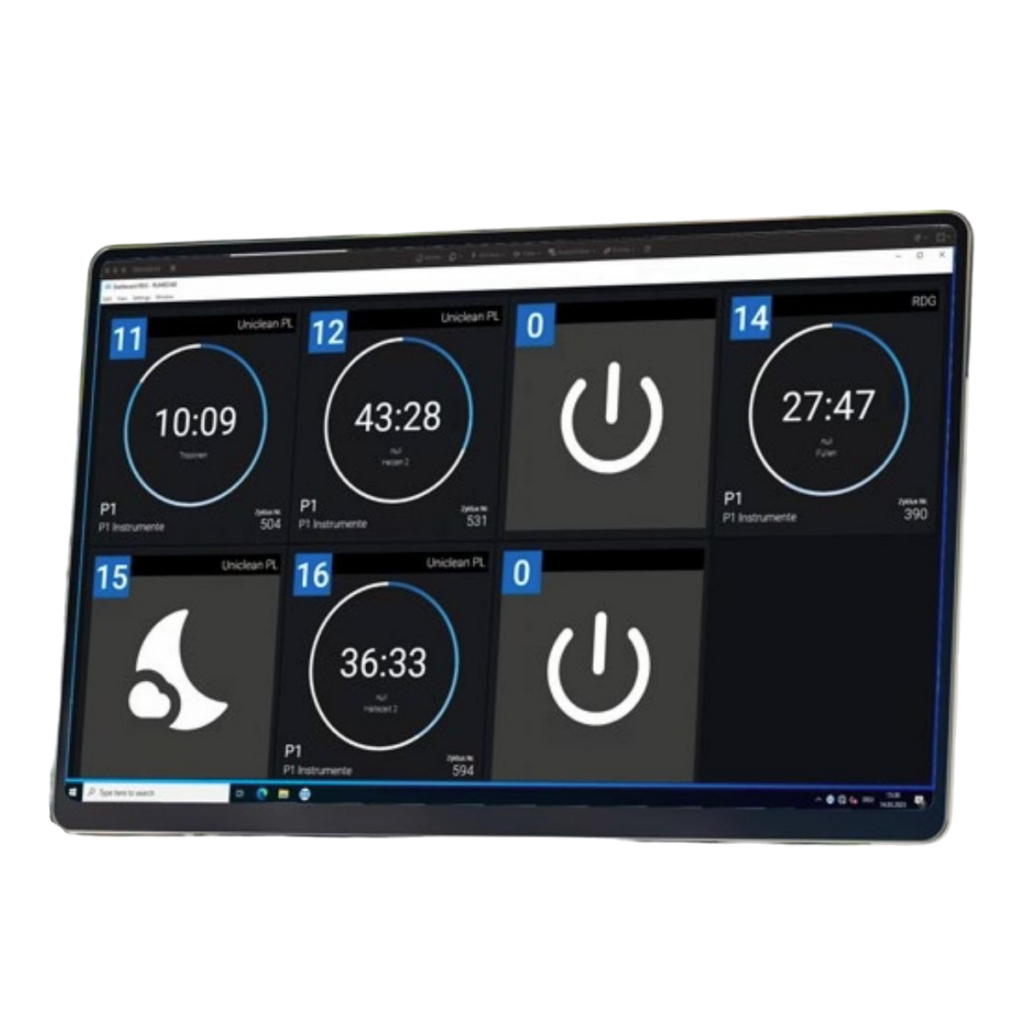

RUMED360® Endo Admin Software
The software manages the administration side of the complete endo system, the Uniclean® PLE 3 and the EDScab® 8H cabinet together.
Endoscopes, adapters and users are all administered through a single modular application, with full cycle documentation that can be produced, visualised and printed as needed.
