Uniclean PL II 15

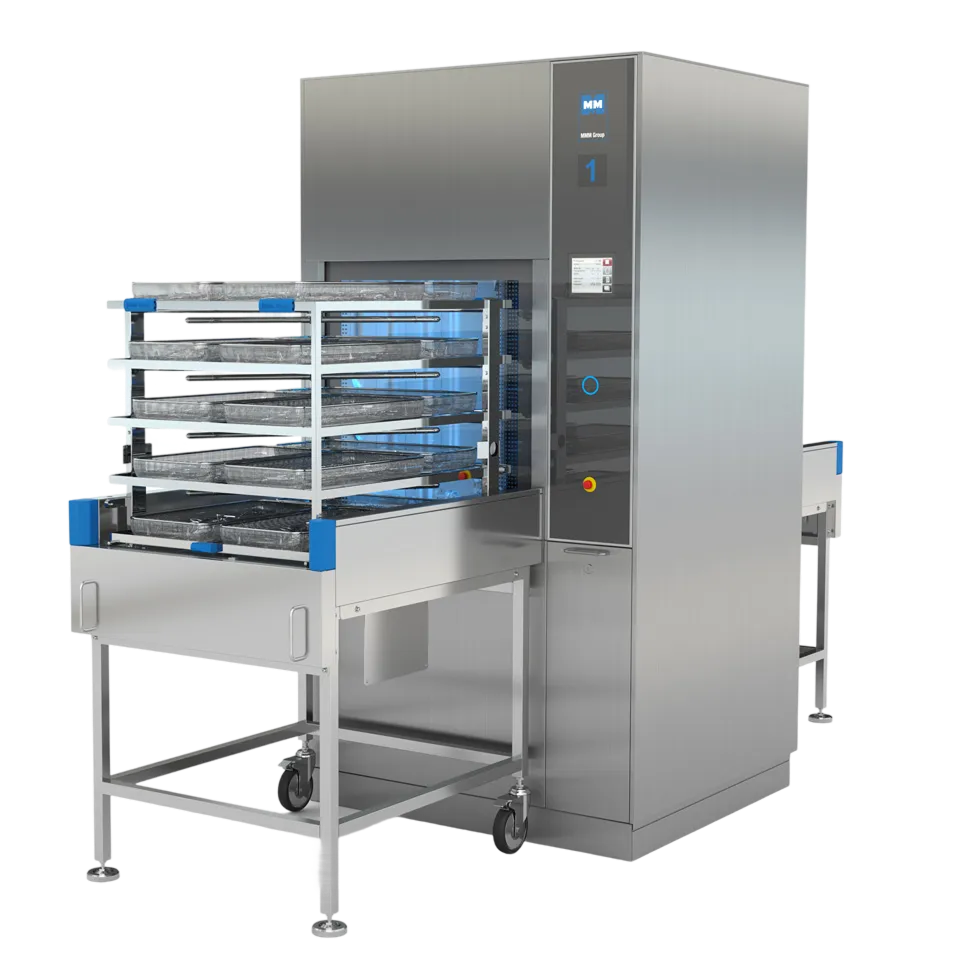

High-performance Washer-Disinfector for laboratory glassware
The Uniclean® PL II 15 is the highest performance washer-disinfector from MMM developed for the thorough reprocessing of large quantities of laboratory glassware. The innovative single-chamber machine has an effective chamber volume of 340 litres and impresses with its compact design of only 1,000 mm. The Uniclean® PL II 15 can be used to reprocess various types of laboratory glassware, from pipettes right through to large volume flasks.
Key Features
- Available in right and left chamber variants
- Slim machine dimensions (1,000 mm wide)
- Vertically downward opening glass doors, electrically driven
- 4D cleaning system with water management
- H-Flow high-performance drying system
- High serviceability
- Electric or steam-heated tank, electric air heating
- PPV system for process parameter verification
- Economiser exhaust air system for heat recovery
Technical Data
Typical Materials
- Laboratory glassware
- Pipettes
- Drink bottles
- Large volume flasks
- Safety goggles
Standard Features
- Effective chamber capacity: 340 litres
- PLC industrial controller from B&R in an IP 55 control cabinet
- PPV system for process parameter verification
- HEPA H14 filter
- No lateral service access needed, access is from the front
- JANUS connection for cleaning racks
- Intelligent water management system
- Drainage pump
- 1 dosing pump
- Exhaust air draft interrupter
- Large number of pre-configured standard programs
- 3-color LED chamber lighting
- Choice of A0 value control or temperature holding time control
Options
- Deionized water pre-heating tank (speed cycle)
- Deionized water recovery tank
- Economizer exhaust air system for heat recovery
- HEPA filter monitoring
- Connections from below
- Additional dosing pumps
- Dosing line for small quantities of cleaning agents
- Conductivity measurement
- Handheld barcode scanner for recording trays
- Barcode scanner for automatic program selection
- Datamatrix recording system for reading item codes
- Potential-free contacts
- Semi-automatic loading and unloading of racks
- Automatic loading and unloading roller conveyor
- Energy manager
- Media shut-off valves
- Machine tub with drain and baseboard
- DIN A4 cycle report printer
- Thermoplotter
- Remote maintenance
- ISA – Intelligent Service Advisor
- Interface to RUMED360® software programs
- Large assortment of loading racks, transport trolleys, manual and automatic roller conveyors, sliding windows, rack hatches and rack storage tables
Cycle Report
- Process log with plain text and color graph display
- Printing via the integrated printer or an external DIN A4 color printer
- Long-term archiving of cycle data as files
- Interface to documentation systems
Ease of Use
- Loading trays can conveniently be loaded from all four sides
- Automatic rack transport inside the chamber
- Rubberized CoolTouch handles allow touching of hot racks
- The JANUS system provides maximum loading flexibility
- Controller and MMM Smart HMI
- Vertically arranged 7″ operating panel with MMM Smart HMI
- Barcode reading system with program pre-selection
- In conjunction with a documentation system such as EcoSoft
Accessories
- Large assortment of loading racks, transport trolleys, manual and automatic roller conveyors, sliding windows, rack hatches and rack storage tables
- RUMED360® software products
