Uniclean® PL II 30

Washer-disinfector for 36 DIN trays

Uniclean PL II 30

Washer-Disinfector for 36 DIN trays

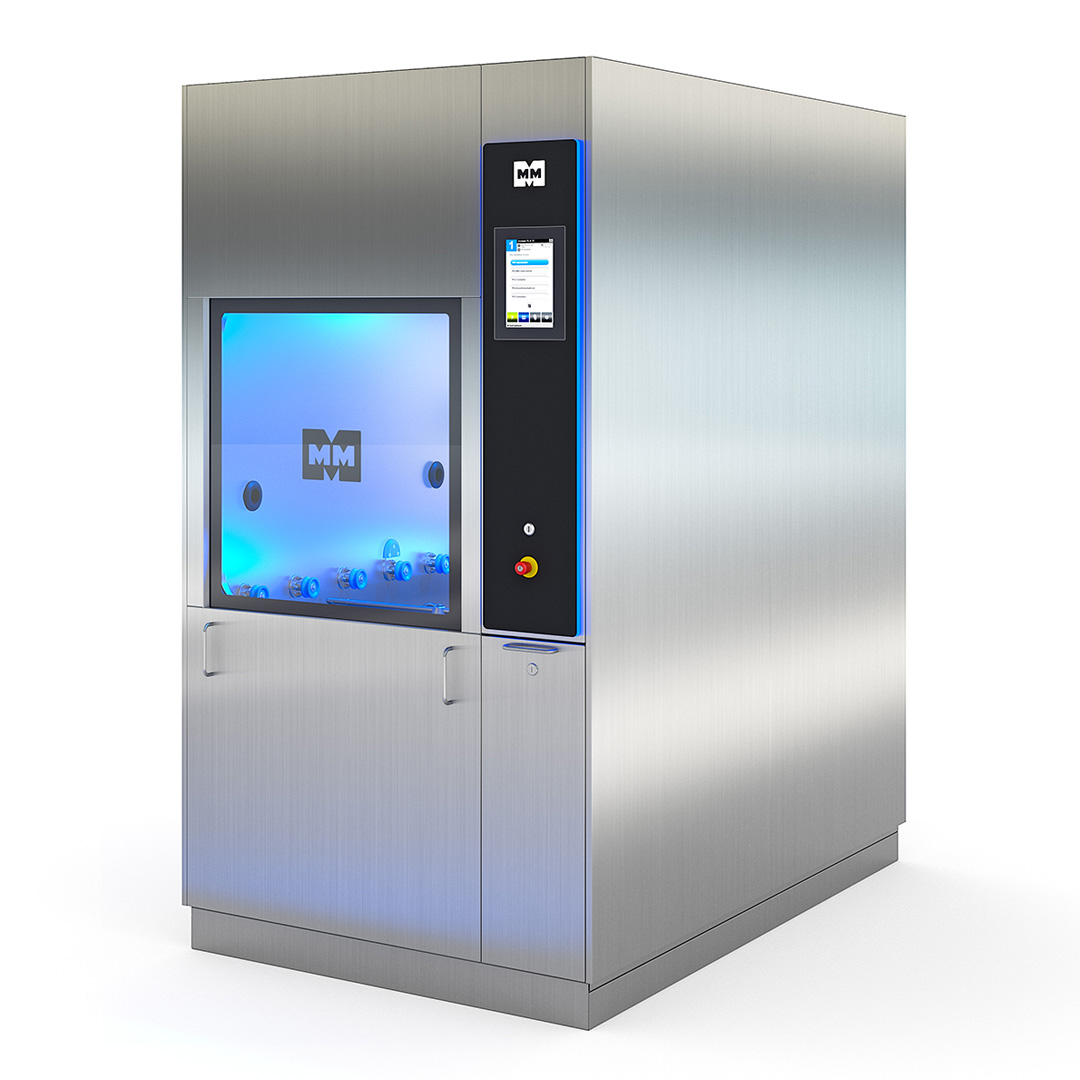

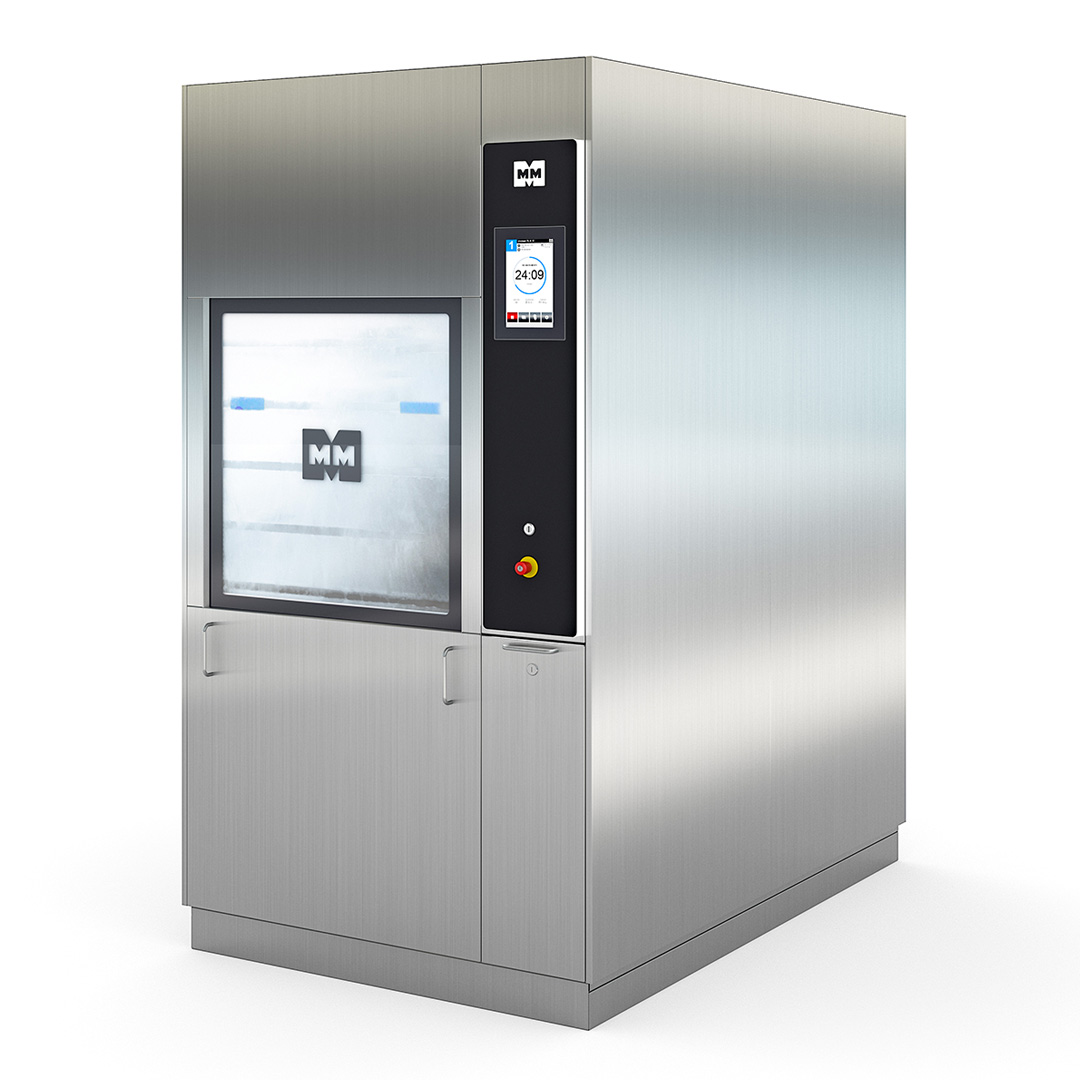

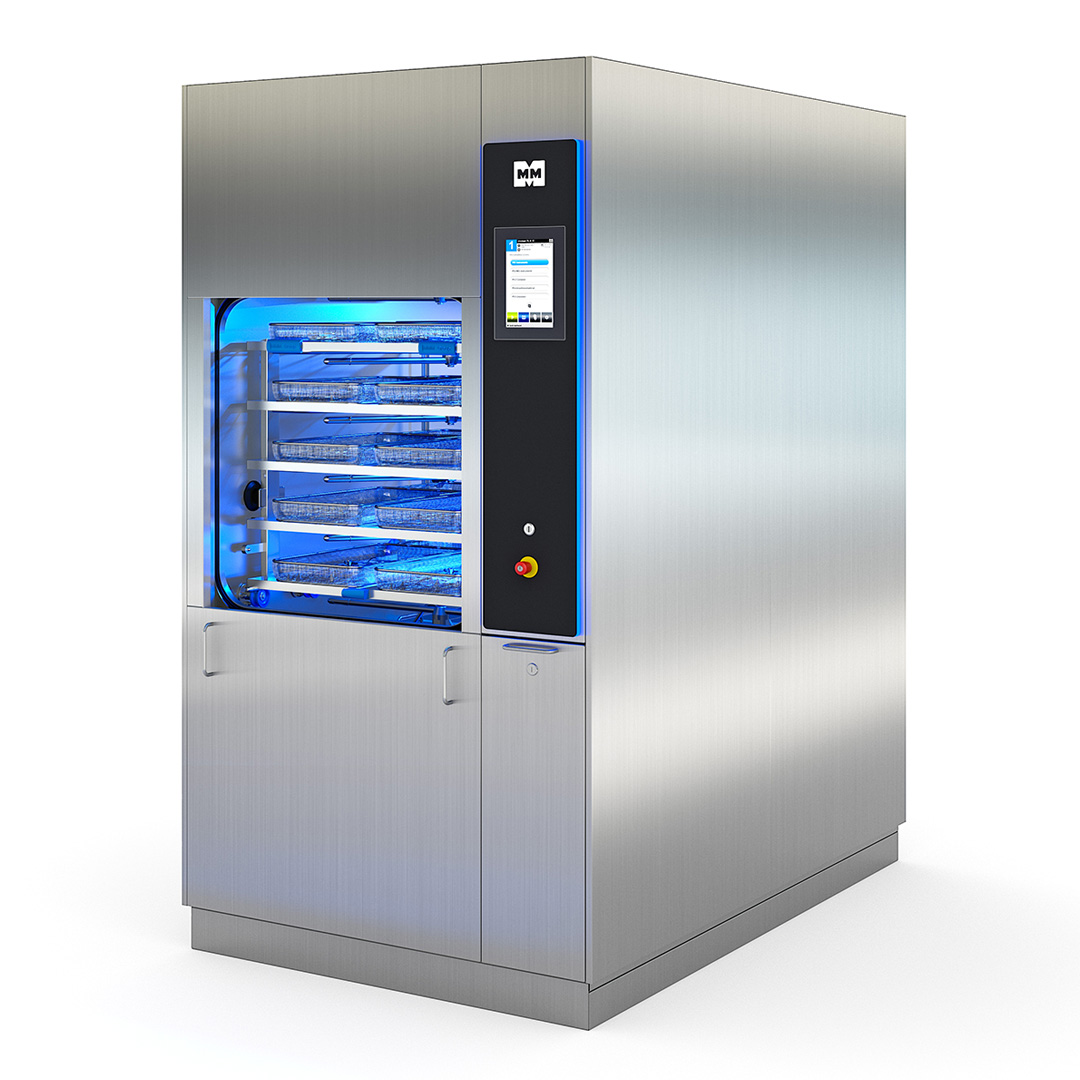

The Uniclean® PL II 30 single-chamber machine has been specially designed for areas in which it is not possible to house a larger-chamber WD for reprocessing sterile goods containers. The 2 in 1 tandem chamber can reprocess up to 8x 1 StU sterile containers and up to 12x ½ StU sterile containers or up to 36 DIN instrument trays in one cycle.

The benefit of the tandem chamber design lies in the doubled reprocessing capacity with the same minimal space requirements (width) compared to the Uniclean® PL II 15 of the same series.

Highlights

  • Hygienic, easy-to-clean design of the outside surface and chamber
  • Tandem chamber for 2 racks with double the reprocessing capacity
  • Shuttle operating function without rack removal
  • Slim machine dimensions (1,000 mm wide)
  • 8D cleaning system with water management
  • Double H-Flow high-performance drying system
  • High serviceability
  • Same racks and peripherals as for Uniclean® PL II 15
  • Detection of specific rack type via a barcode
  • “Halo” LED control panel with status colors
  • Vertically arranged 7″ operating panel with MMM Smart HMI
  • Cleaning of robotic instruments (DaVinci)

“HALO” LED CONTROL PANEL

Light and light effects not only have a proven beneficial effect on humans but also increase the quality and pleasantness of the workplace. The “Halo” LED control panel developed by MMM provides a perfect interplay of ambiance and function.

The “Halo” light effect in various status colors reflects off the stainless steel surface and gives the MMM washer-disinfector a stylish appearance.

8D Cleaning System

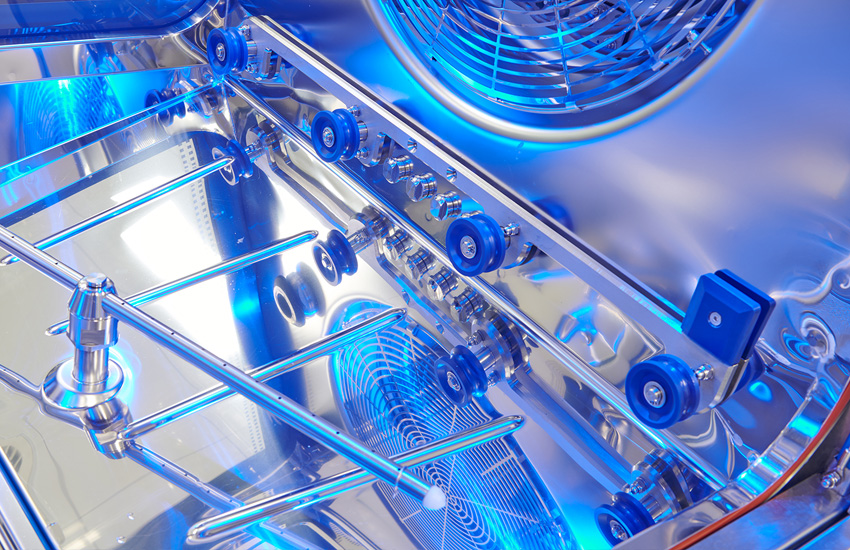

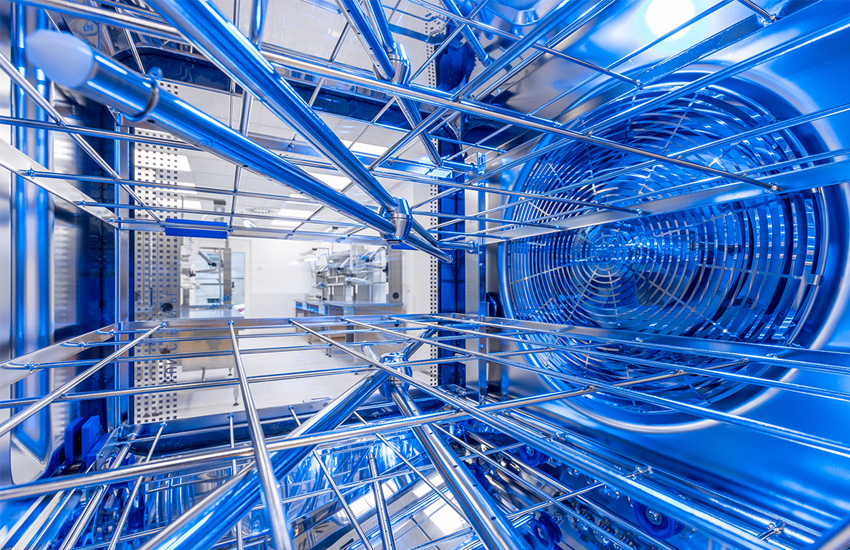

The 8D cleaning system developed by MMM creates a full-coverage spray pattern that acts from above and below. The pump pressure, which is optimally matched to the water volume and process chemicals, distributes the water evenly to all four consumers (two rotary arms in the chamber, two JANUS rack connections).

The cleverly devised cleaning geometry and the interplay between the machine and rack allows all external and internal surfaces of the goods being treated to be optimally reached and wetted.

Technical Data

Standard Features
  • Maximum width only 1,000 mm
  • Capacity for 36 DIN trays, 8x 1 StU or 12x ½ StU sterile containers
  • Industrial PLC from B&R in an IP 55 control cabinet
  • “Halo” LED control panel with status colors
  • Vertically arranged 7″ operating panel with MMM Smart HMI
  • PPV system for process parameter verification
  • Double H-Flow: highly efficient drying system
  • 2 HEPA H14 filters
  • Electric air heater
  • Service access does not require additional space in combination with the Uniclean® PL II 15
  • JANUS connection for cleaning racks
  • Intelligent water management system
  • 8D cleaning system
  • Sliding drawer for control cabinet with “Halo” LED control panel
  • Sliding drawer for cleaning agents and dosing system
  • Chamber material: AISI 316L

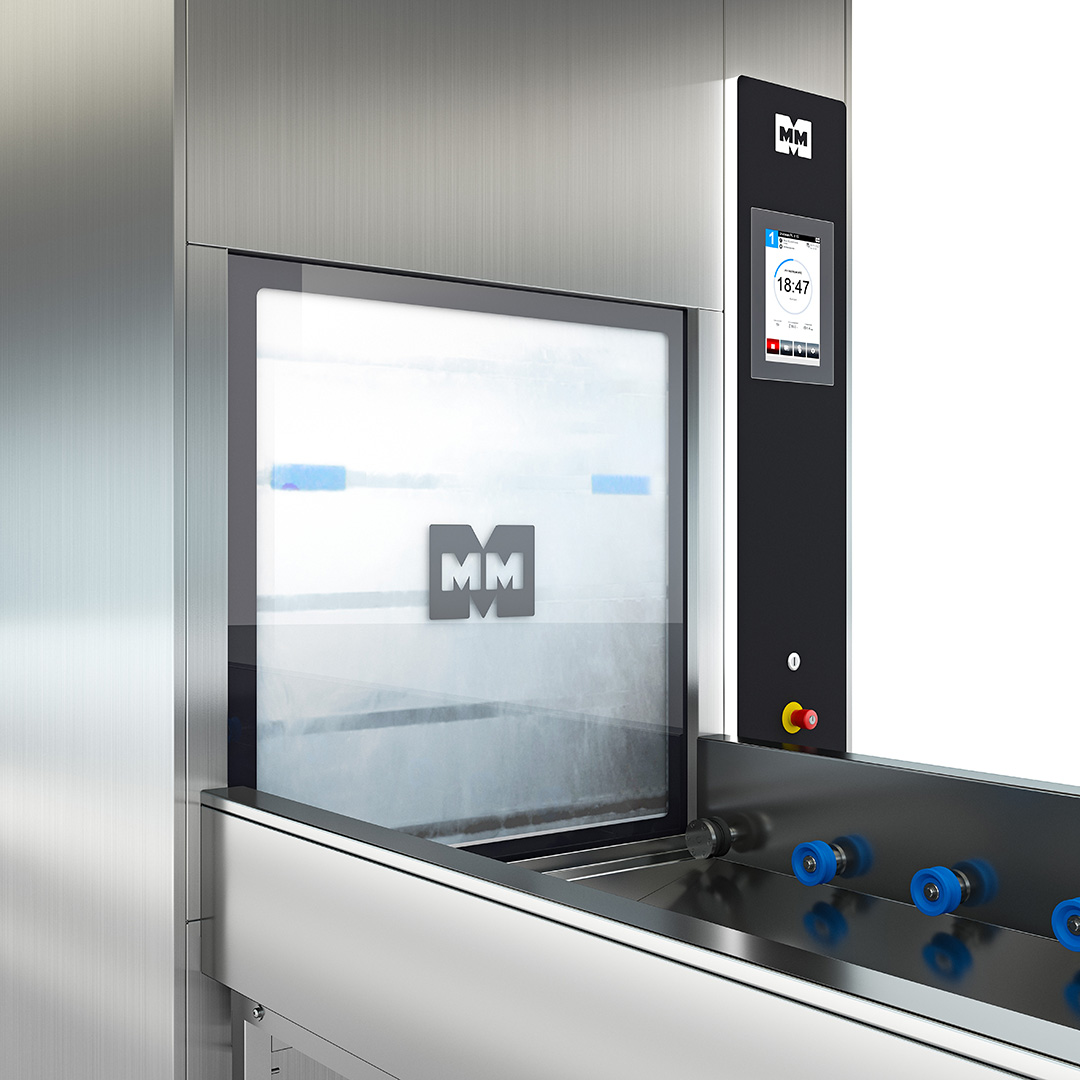

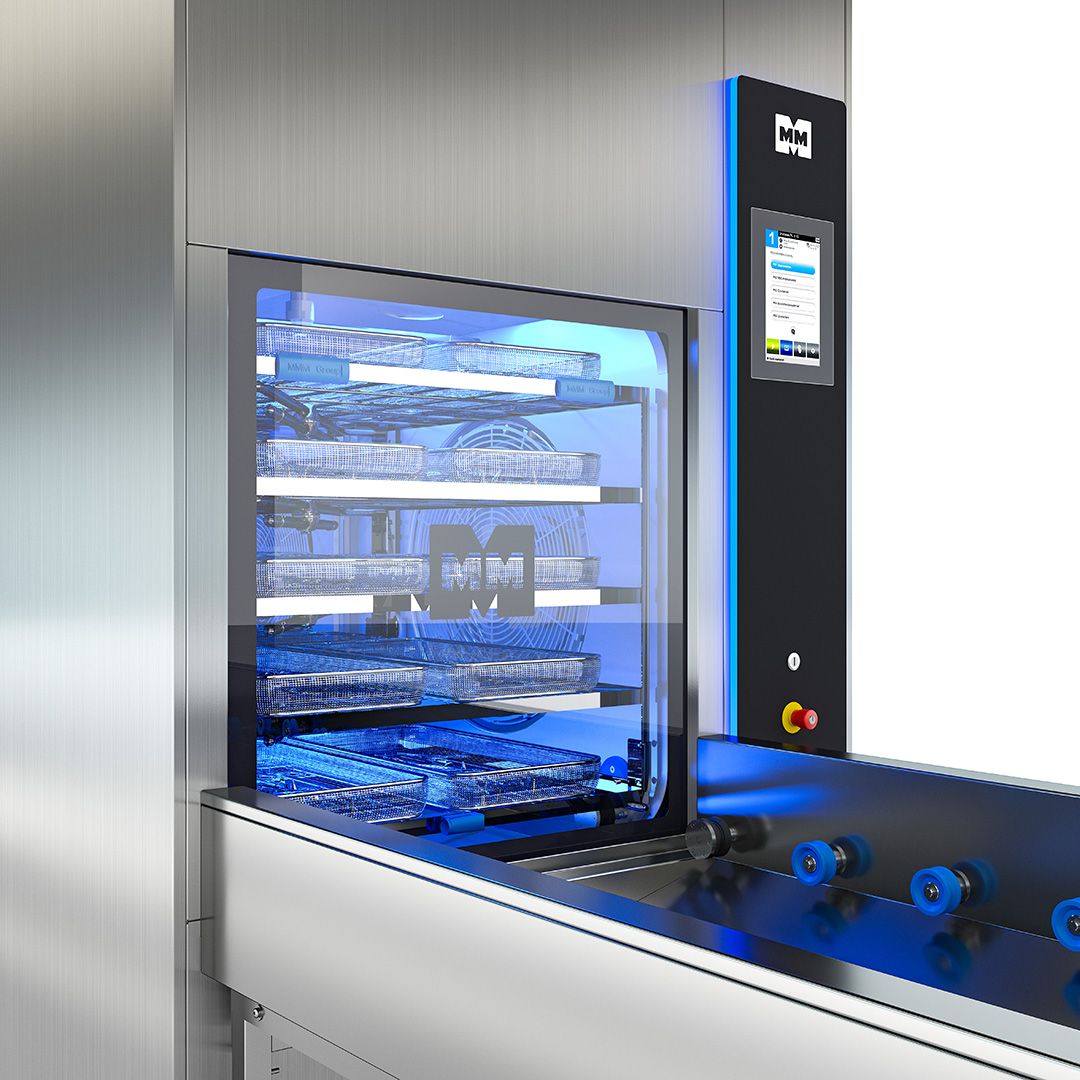

  • Electrically driven, vertically downward opening glass doors
  • Electric or steam-heated tank
  • Drainage pump
  • 1 dosing pump
  • Exhaust air draft interrupter
  • Large number of pre-configured standard programs
  • 3-color LED chamber lighting
  • Choice of A0 value control or temperature holding time control
  • Semi-automatic loading and unloading of racks
Options
  • Deionized water pre-heating tank (speed cycle)
  • Deionized water recovery tank
  • HEPA filter monitoring
  • Connections from below
  • Additional dosing pumps
  • Dosing line for small quantities of cleaning agents
  • Conductivity measurement
  • Handheld barcode scanner for recording trays
  • Barcode scanner for automatic program selection
  • Datamatrix recording system for reading item codes
  • Potential-free contacts

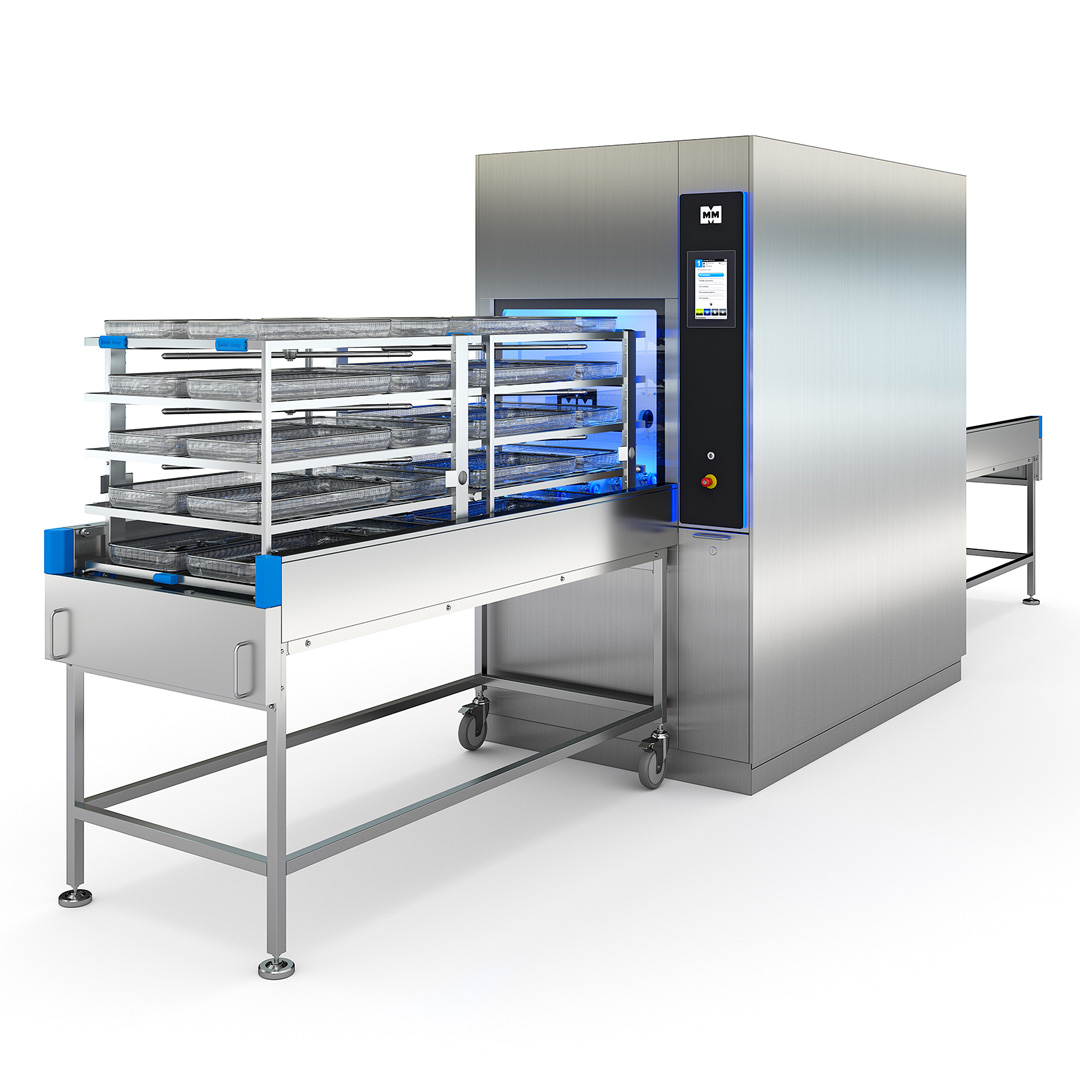

  • Automatic loading and unloading roller conveyor
  • Energy manager
  • Media shut-off valves
  • Machine tub with drain and baseboard
  • DIN A4 cycle report printer
  • Thermoplotter
  • Remote maintenance
  • ISA – Intelligent Service Advisor
  • RUMED360® software products
Ease of use
  • Loading trays can conveniently be loaded from all four sides
  • Automatic rack transport inside the chamber: Even heavy racks can be transported in and out effortlessly and precisely positioned in the chamber
  • Rubberized CoolTouch handles allow touching of hot racks. They can be variably applied
  • The JANUS system provides maximum loading flexibility because the racks can also be rotated 180° when inserted into the chamber
  • Controller and MMM Smart HMI
  • The clearly structured menu navigation on the color touch display with unambiguous symbols ensures high operational reliability:
    • Vertically arranged 7″ operating panel with MMM Smart HMI and “Halo” LED control panel with status colors
    • The large remaining time display enables optimal time management
  • Barcode reading system with program pre-selection: The automatic barcode detection ensures the right program is selected for the items to be cleaned.
  • In conjunction with a documentation system such as EcoSoft, all relevant process steps for the items being cleaned are automatically documented.
Accessories
  • Large assortment of loading racks, transport trolleys, manual and automatic roller conveyors, sliding windows, rack hatches and rack storage tables
  • UPL C-Shuttle® cross slide for automatic loading and unloading
  • RUMED360® software products
